Functional characteristics
Resolution: 20.0MP
Focal length: 8mm
Image size: 1.1"
Mount: C-Mount
Home\Product\FA Fixed Lens\HT-FA0815A

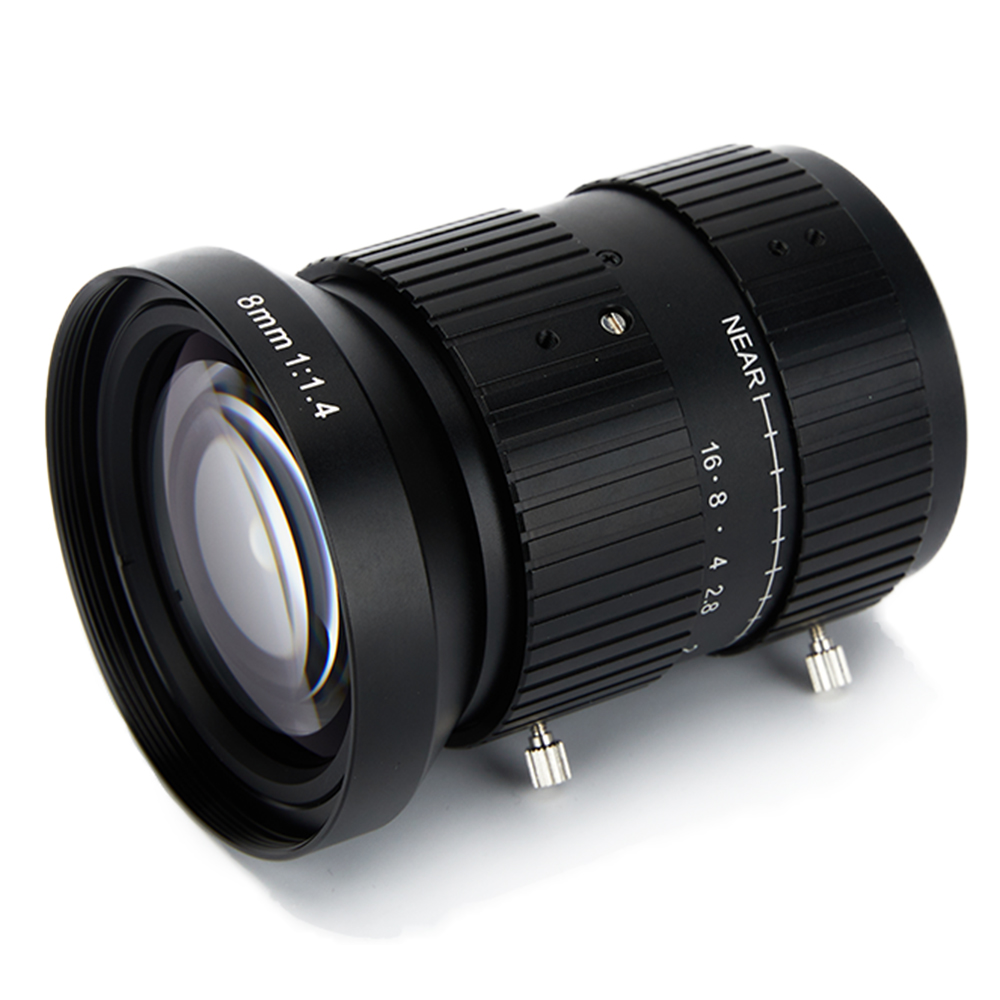

HT-FA0815A
8mm, F1.4, 1.1", 20MP Lens, C-Mount
8mm, F1.4, 1.1", 20MP Lens, C-Mount
Key Feature
Ultra high resolution and consistency of image clarity
Lower distortion
Super high image peripheral brightness ratio
Excellent optical properties are maintained at different object distances
Available Model
HT-FA0815A

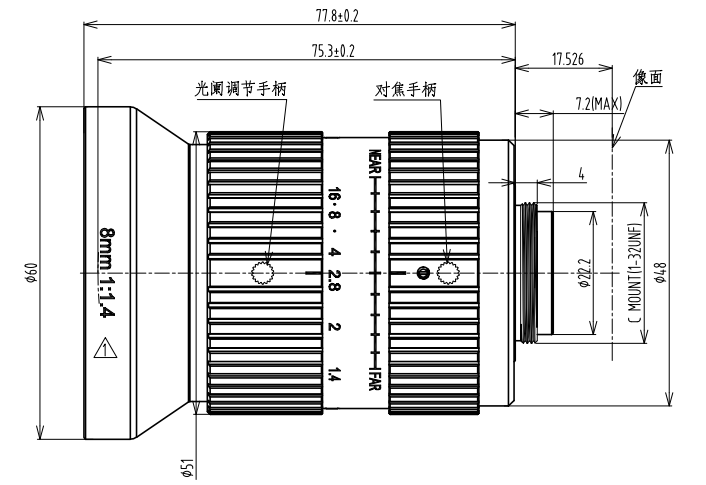

Dimension
General Information | ||
|---|---|---|
Lens Brand | HuaTeng Vision | |
Product Model | HT-FA0815A | |
Full Fange Of Products | Machine Vision FA Lens | |
Product Name | 20.0MP 1.1" FA Machine Vision Lens | |
Product Dynamics | Has Been Released For Mass Production. | |
Parameter Specification | ||
Focal Length | 8mm | |
Image Size | 1.1" | |
F.NO | F1.4~16 | |
Mouth | C-Mouth | |
Distortion | <5.5% | |
Field of View(V x H) |
| |
Filter Size | M58 x P0.75 | |
Lirs Control | Manual | |
Focus Control | Manual | |
Dimensions | φ28.6×23.5mm | |
Weight（g) | 80g | |
Operating Temperature | -20°C~50°C | |
使用说明书
华腾威视
Technical Specification
Huateng Vision
